Product Overview
Pultruded fiberglass reinforced plastic (FRP) grating is durable, corrosion resistant, and low maintenance for challenging environments. Manufactured with approximately 70% fiberglass rovings and 30% resin, pultruded gratings safely support industrial and pedestrian loads on longer spans. Produced by drawing fiberglass rovings and mats though a resin bath and heated dies, bearing bars and cross bars are then mechanically and chemically locked with a recessed tie bar.
Pultruded grating features:
- “I” bar and “T” bar profiles
- Industrial and pedestrian rated options
- Fire retardant, meeting both ASTM E84 and ASTM D635
- Slip resistant quartz grit walking surface
Safe-T-Span® Pultruded Fiberglass Grating

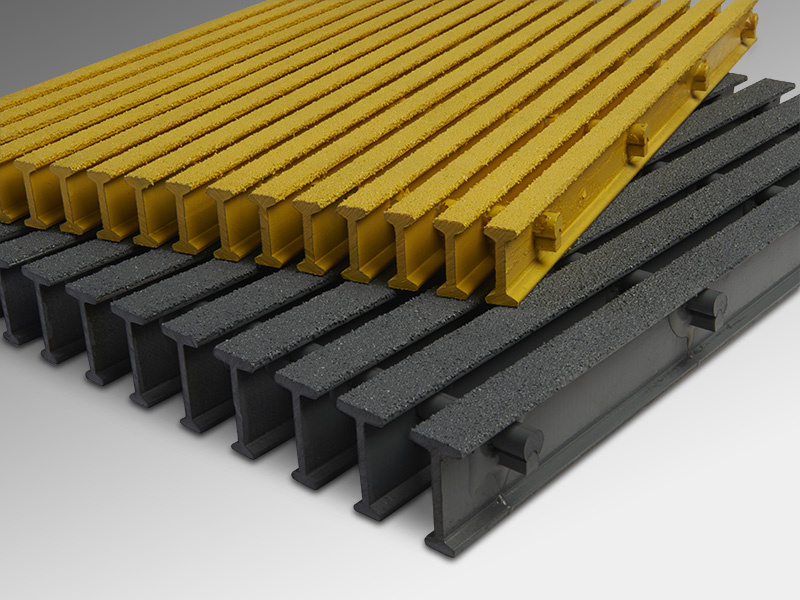

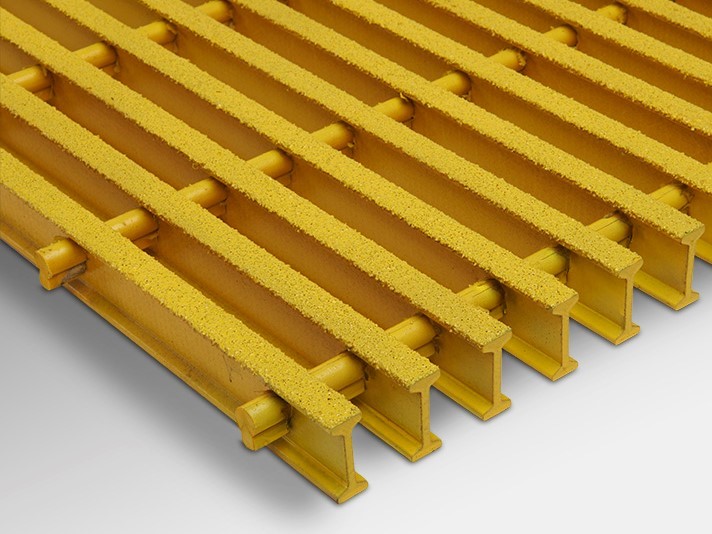

Safe-T-Span® Industrial Pultruded Gratings
Our most popular pultruded gratings are available in 1”, 1-1/2” and 2” depths. The 1” and 1-1/2” deep products are offered with an “I” shaped bearing bar and open area of 60% or 40%. The “T” shaped profile used on 2” deep products are spaced with open area of 50% or 33%.
Popular resins include fire retardant ISOFR (isophthalic polyester), VEFR (vinyl ester), or U.S. Coast Guard approved Phenolic. All products are available with standard coarse grit walking surface. For further details on mesh openings and panel sizes, please view our Sizes & Options.

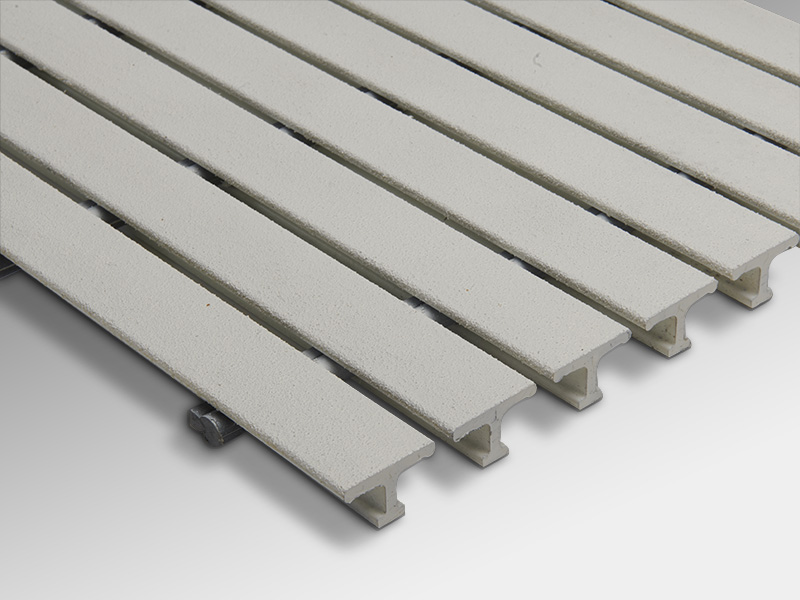

Aqua Grate® Pedestrian Grating
Popular for use in facilities such as swimming pools, water parks, marinas, and piers, ADA conforming Aqua Grate is specifically designed to meet the corrosive conditions associated with these environments. Produced in 1” and 1-1/2” depths, the nominal 1/4” opening between the 1-1/2” wide “T” shaped bearing bars provides comfort under foot.
Produced with a synthetic surface veil and UV inhibitors in the resin, Aqua Grate is long-lasting in outdoor applications. The walking surface is coated with slip resistant Aqua Grit (fine grit) which is comfortable under bare feet. Standard colors are white or light gray. For further information on mesh openings and panel sizes, please view our Sizes & Options.

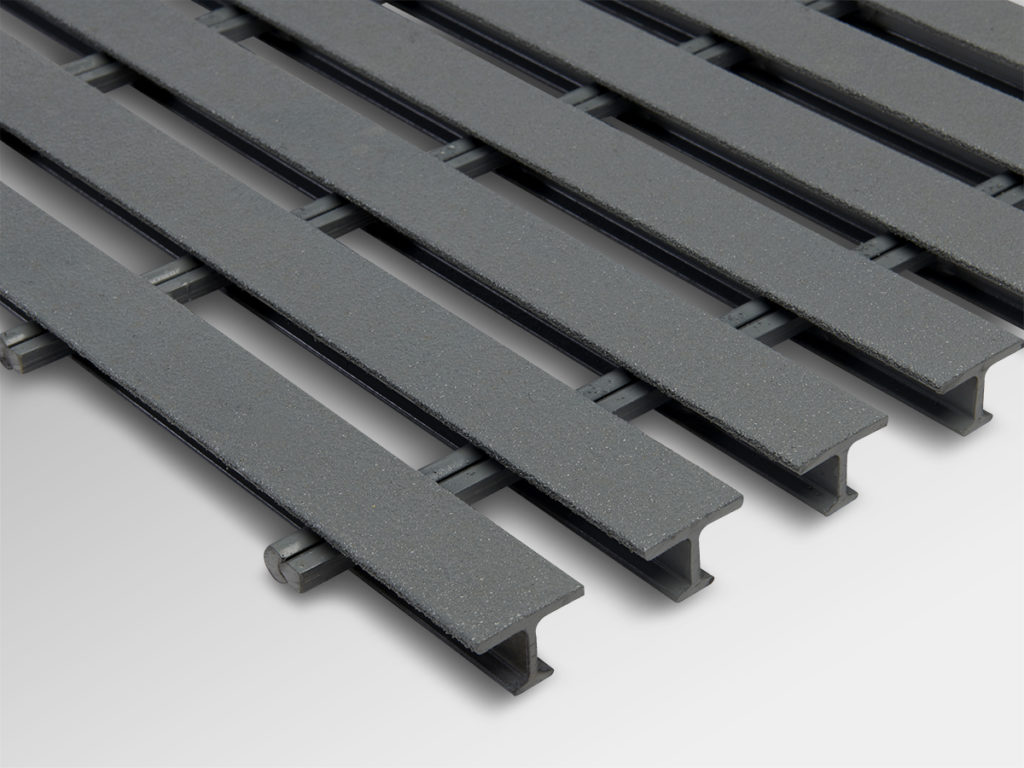

Safe-T-Span® Pedestrian Grating
Designed specifically for pedestrian applications where a slip resistant, corrosion resistant, durable, lightweight material is required. Available in 1” and 1-1/2” deep “T” shaped profiles with a 1-1/2” wide flange on the walking surface. Open area options are 38% or ADA compliant 25%, and standard colors are yellow or gray.
Surface options include standard coarse grit or Aqua Grit, a fine grit comfortable under bare feet. For further information on mesh openings and panel sizes, please view our Sizes & Options.
Standard Resins & Colors
ISOFR
Isophthalic polyester resin formulation with a low flame spread rating of 25 or less designed for applications where there is moderate exposure to corrosive elements (DNV Type Approval Certificate F-16856).
Flame Spread: ASTM E84 rating of 25 or less
Standard colors: yellow or dark gray.

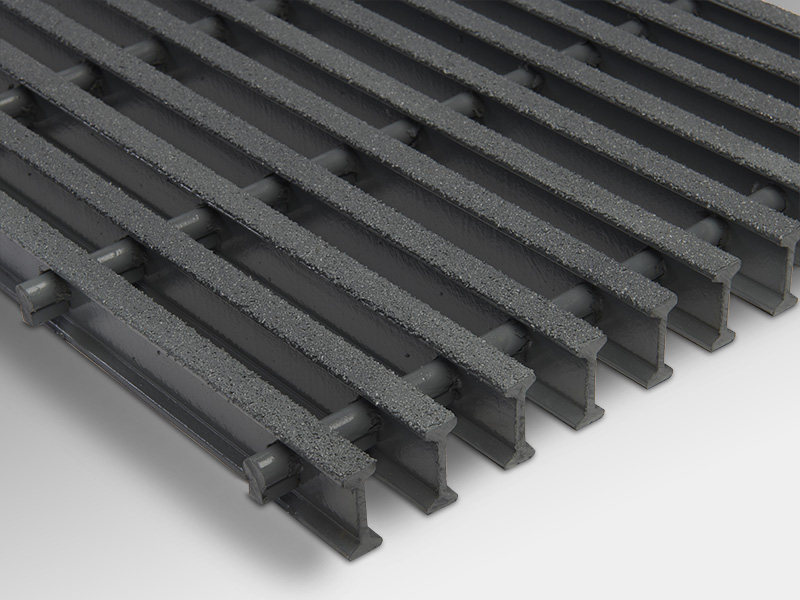

VEFR
Vinyl ester resin system with a flame spread rating of 25 or less for dependable resistance to both acidic and alkaline environments.
Flame spread: ASTM E84 rating of 25 or less
Standard colors: yellow or dark gray.

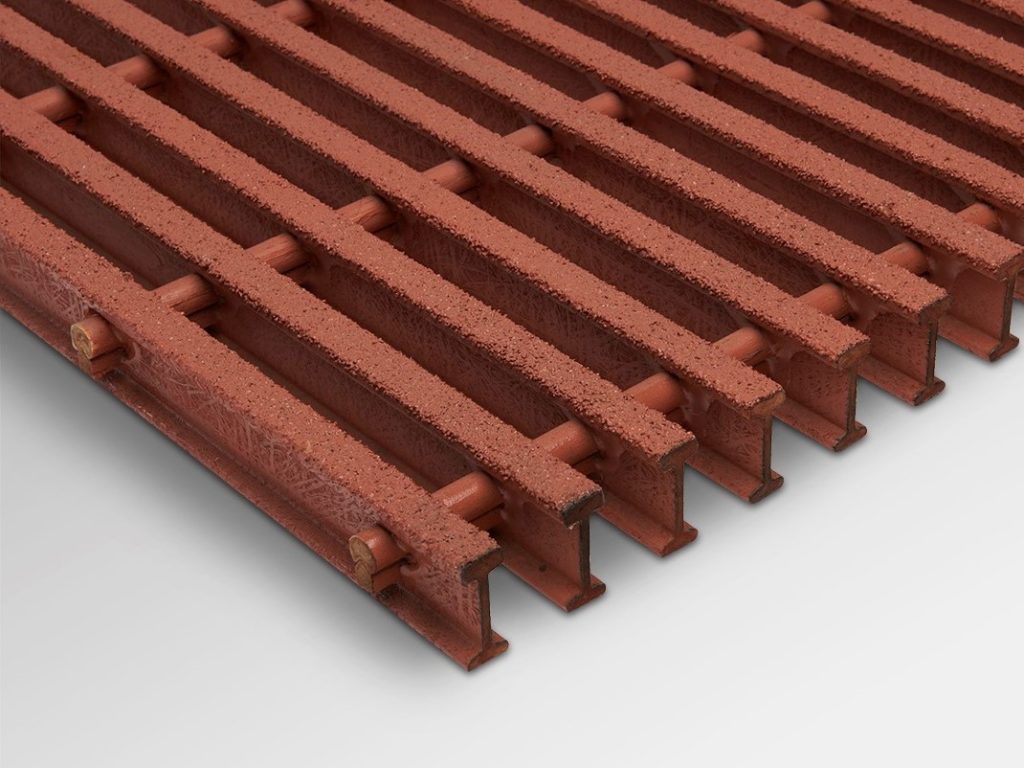

PHENOLIC
A Coast Guard approved flame-resistant phenolic resin with an extremely low flame spread rating of 10 and a smoke index of 400 (unpainted); flame spread of 15 and a smoke index of 450 (painted, UV coating) – designed primarily for the offshore industry. (Coast Guard approved for Level 2 & 3 performance criteria – Approval Number: 164.040/2/2; DNV GL Type Approval No. TAF000003C; ABS Product Type Approval Level 2 & 3 Certificate No. 01-HS34733-X)
Standard colors: natural/orange.
For guidance on selecting the appropriate resin, please view our Chemical Resistance Guide.
*For specific requirements and questions, please contact technical services.
Custom colors are available on special order, subject to minimum quantity requirements.
Surface Options

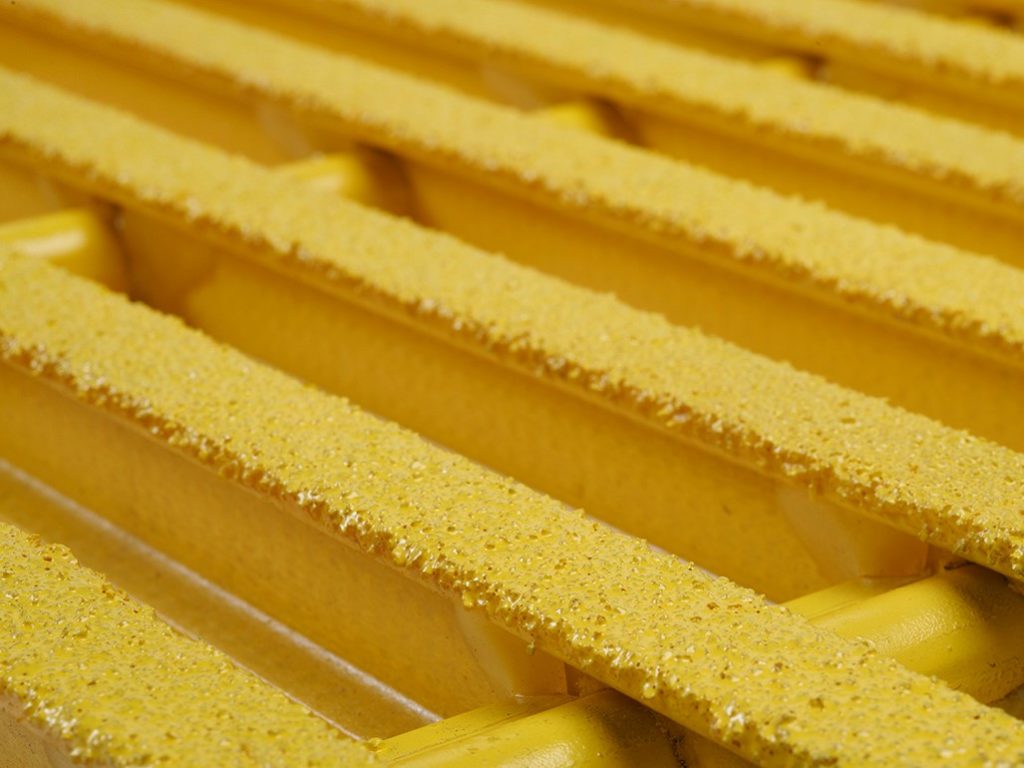

Standard Coarse Grit
Integrally-applied coarse grit provides increased slip-resistance for industrial applications.

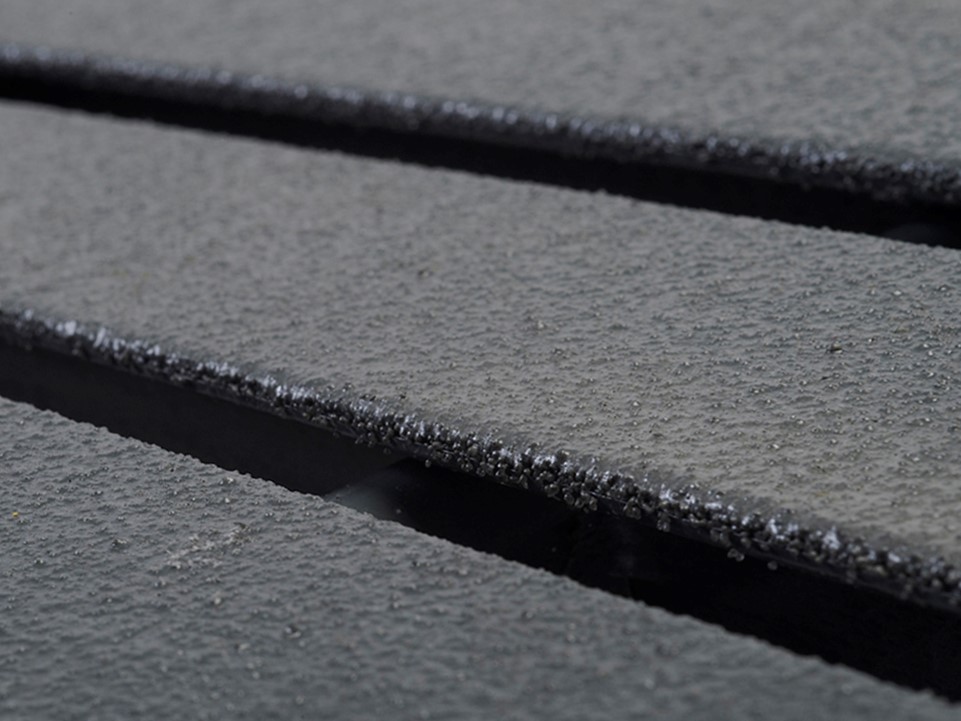

Aquagrit
Optional fine grit surface preferred for barefoot traffic on docks or recreational applications. Also known as sugar grit.
Engineering Services
Grating Pacific offers complete engineering services from concept to production. Available services include:
- Design consultation
- Technical manuals
- Field technical representatives
- CAD drafting
- Engineering certification
- Custom design services
FRP Grating Fabrication
Our fully trained production staff will transform stock panels into custom components to your exact specification. We will layout and cut our products to any configuration, install fastening or lifting devices, and custom cut stair treads to precise tolerances. Shop fabrication eliminates the need for dust containment and scarp disposal at the project site.
Post-fabrication, all pieces are properly resin sealed to assure maximum life. Additionally, all parts are piece marked to matching installation drawings which accompany product shipment. Our fabrication services are accurate, prompt, and lead to straightforward installation.
FRP Structural Fabrication
We proudly offer in-house fabrication of FRP structures including:
- Catwalks
- Stairs
- Handrails
- Ladders
- Supporting structures
Services provided include CAD design, engineering certification, full fabrication, and delivery. Fiberglass structures and flooring can ship “knocked down” ready for field installation, partially assembled, or fully assembled subject to transportation restrictions.
Product Overview
All FRP grating should be securely fastened to its supporting structure to protect the grating and increase product service life. Specialty clips manufactured from type 316 stainless steel are available for all fiberglass products. Clips can be used to attach grating or plate to the supporting structure or fasten adjacent grating panels to minimize load induced differential deflection.
Maximum recommended clip spacing is 48 inches on center with a minimum of four (4) clips per piece of grating.

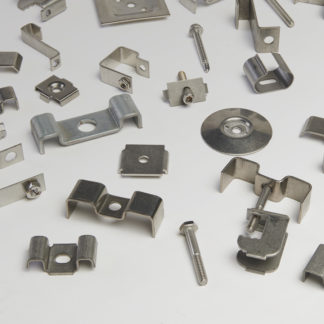

Fiberglass Grating Fasteners
Type “M” Saddle Clip
Used to secure molded or pultruded panels to a support using two adjacent bearing bars. Bolt not included with standard clip order.
Type “J” Hold Down Clip
Used to secure molded grating to a support using one bearing bar. Bolt not included with standard clip order.
Type “F” End Panel Clip
Used to connect adjacent molded FRP Panels. Fastening bolt included with clip order.
Type “E” Hold Down Clip
Specifically designed to attach Ecograte62 molded grating to supporting structures. Bolt not included with standard clip order.
Type “FC” Hold Down Clip
Type “FC” clips are used to secure pultruded grating to adjacent supports. Bolt not included with standard clip order.
Type “G” Friction Clip
Used to attach molded or pultruded grating to support flanges that are less than ¾” thick. Type “G” Hold Down clips are a friction clip and do not require drilling into the support flange. Fastening bolt included with clip order.
Type W Clip
Used to secure covered grating or plate to supporting structures. Bolt not included with standard clip order.
Type WLP Clip
Used to secure covered grating or close mesh FRP grating to supporting structures. Bolt not included with standard clip order.
